Energy-Saving Aluminum Billet Homogenizing Furnace with Scrap Preheating

Our 20-ton capacity aluminum billet homogenizing furnace represents the pinnacle of energy-efficient industrial heating technology. Designed specifically for high-volume aluminum production facilities, this advanced furnace integrates innovative scrap preheating capabilities to significantly reduce energy consumption and operational costs.

Description

Energy-Saving Aluminum Billet Homogenizing Furnace with Scrap Preheating

Our 20-ton capacity aluminum billet homogenizing furnace represents the pinnacle of energy-efficient industrial heating technology. Designed specifically for high-volume aluminum production facilities, this advanced furnace integrates innovative scrap preheating capabilities to significantly reduce energy consumption and operational costs.

Key Technical Specifications

  • Capacity: 20-ton fixed rectangular furnace design
  • Furnace Dimensions: 5500×5500mm robust construction
  • Thermal Efficiency: Advanced brick liner with 500mm thickness
  • Operating Temperature: 1000-1200°C working range
  • Fuel System: Natural gas operation with regenerative burner technology
  • Production Rate: 4-6 tons per hour melting capacity
  • Energy Consumption: 65-70 m³/ton optimized fuel usage

Advanced Features

  • Scrap Preheating System: Pre-heats aluminum scrap using waste heat recovery

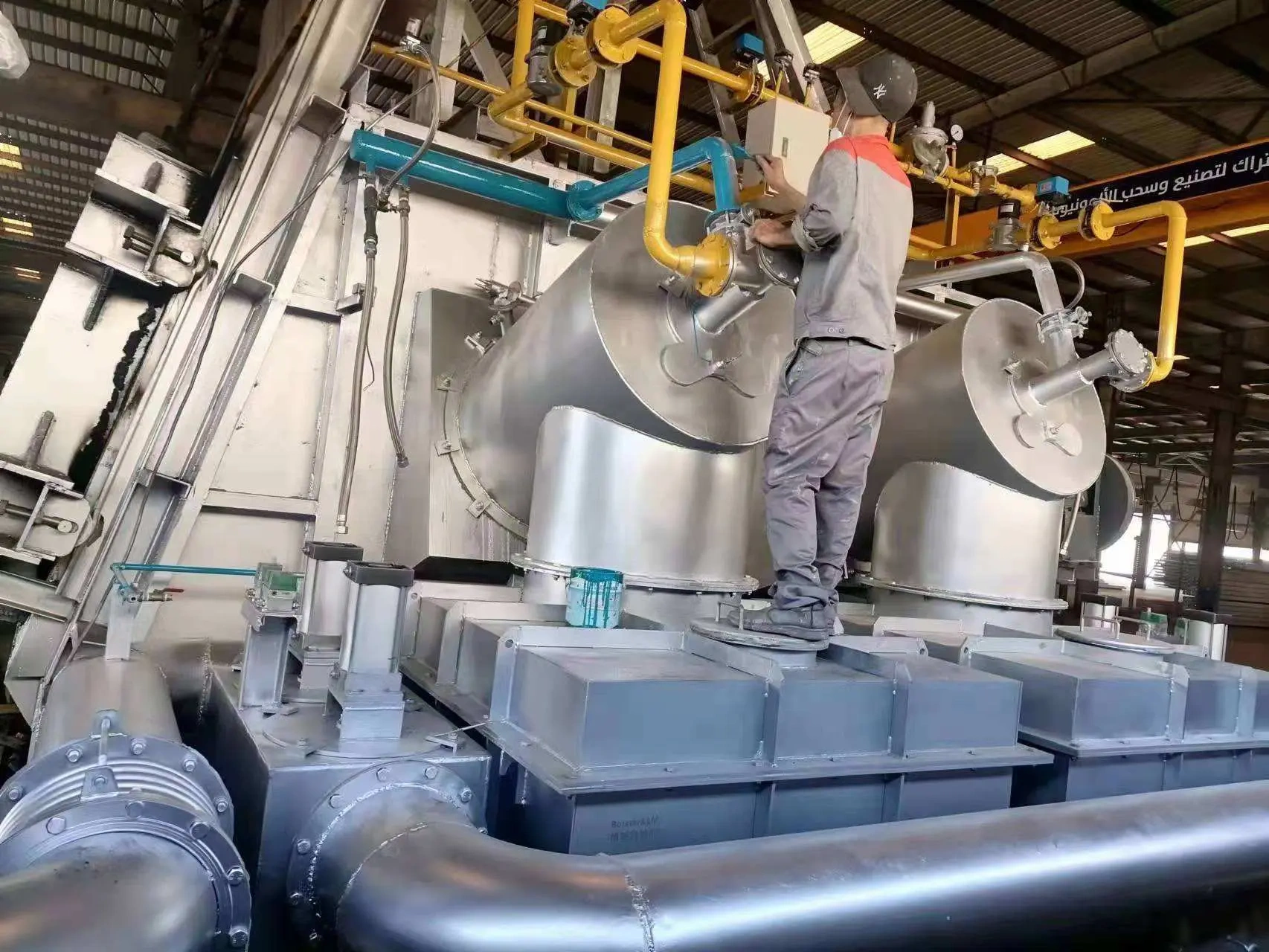

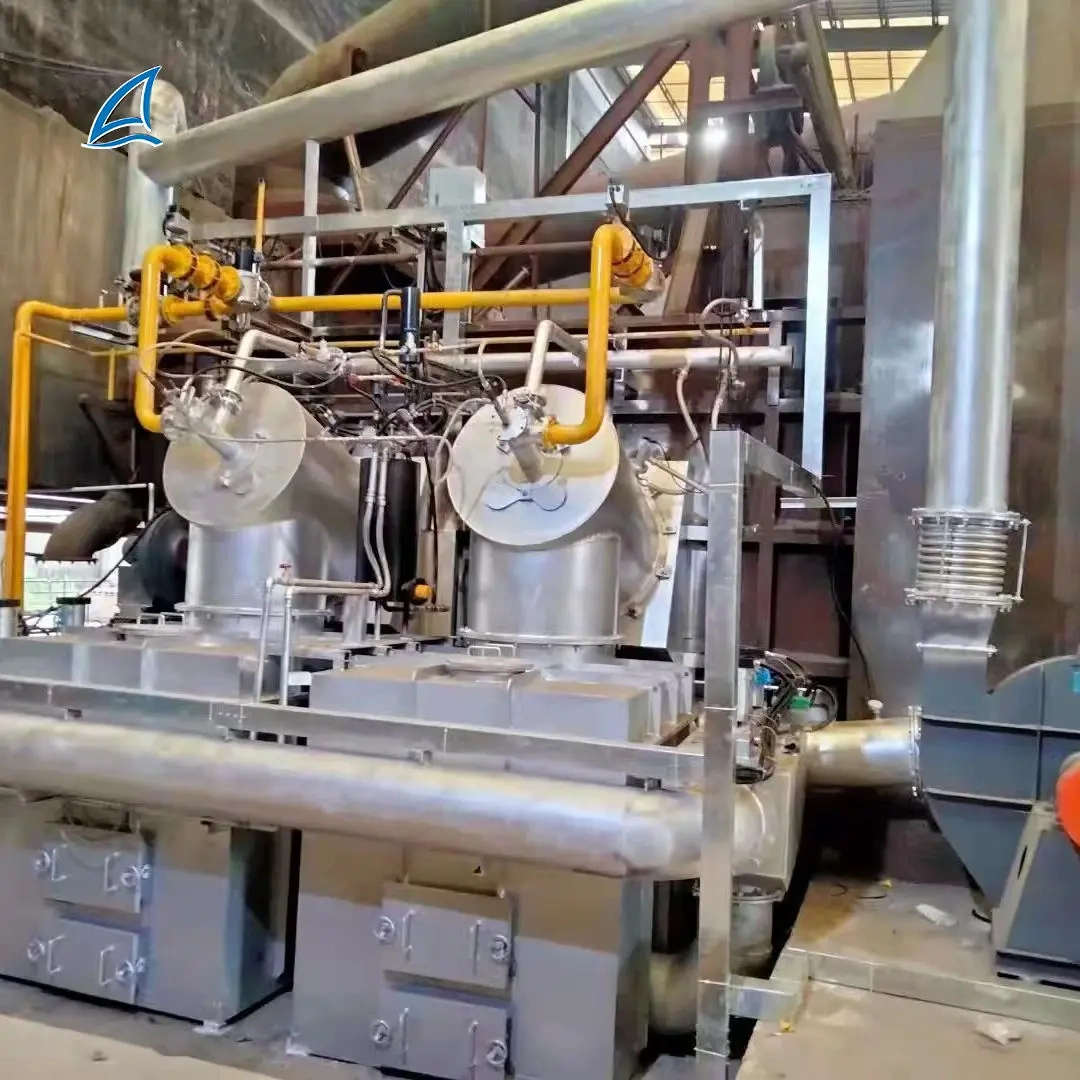

  • Regenerative Burners: Dual-burner system for maximum heat recovery
  • Enhanced Insulation: 500mm brick liner maintains optimal temperature
  • Automated Operation: Motorized furnace door with self-weight press lock
  • Safety Compliance: Furnace shell temperature ≤ ambient +35°C

Performance Excellence

  • High Throughput: ≥800kg/minute aluminum liquid discharge
  • Material Versatility: Compatible with 1-8 series aluminum grades
  • Operational Efficiency: Inclined furnace mouth (2600x1400mm) design
  • Reliable Construction: 160+6mm steel profile with reinforced structure

Applications

Aluminum Extrusion Plants

Essential for producing high-quality aluminum billets for extrusion processes

Automotive Components

Manufacturing aluminum parts for engine blocks, wheels, and structural components

Aerospace Industry

Producing aerospace-grade aluminum alloys for aircraft structures and components

Construction Materials

Creating aluminum profiles for window frames, curtain walls, and architectural elements

Consumer Electronics

Manufacturing aluminum casings for laptops, smartphones, and electronic devices

Industrial Equipment

Producing aluminum components for machinery, heat exchangers, and industrial systems

Transportation Sector

Creating aluminum parts for railway, marine, and automotive applications

Renewable Energy

Manufacturing aluminum components for solar panel frames and wind turbine parts

Customization & Support

We offer comprehensive customization options including voltage specifications, nameplate branding, and dimensional adjustments to meet your specific production requirements. Each unit is backed by our technical support team and includes detailed operational training.

Packaging & Delivery

  • Shipping Unit: Single complete system
  • Package Dimensions: 30000×30000×30000 cm
  • Gross Weight: 1,000,000 kg
  • Delivery: Professional packaging for international shipping

Ideal for aluminum profile manufacturers, automotive parts producers, and aerospace material processors seeking to enhance production efficiency while reducing energy costs.
