145KW total power for heavy-duty extrusion tasks
18-second no-billet cycle time for efficiency
21MPa working pressure ensures quality extrusion
Handles Ø120mmx580mm billets for industrial scale

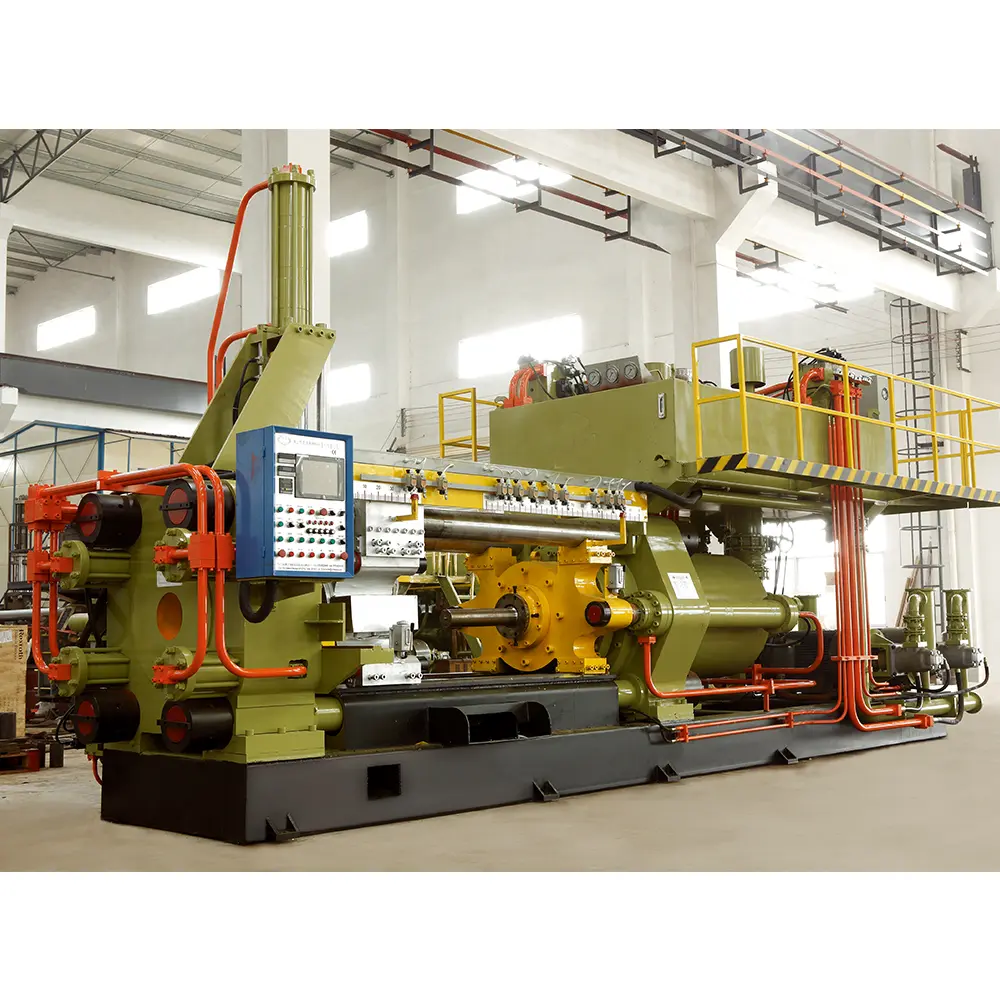

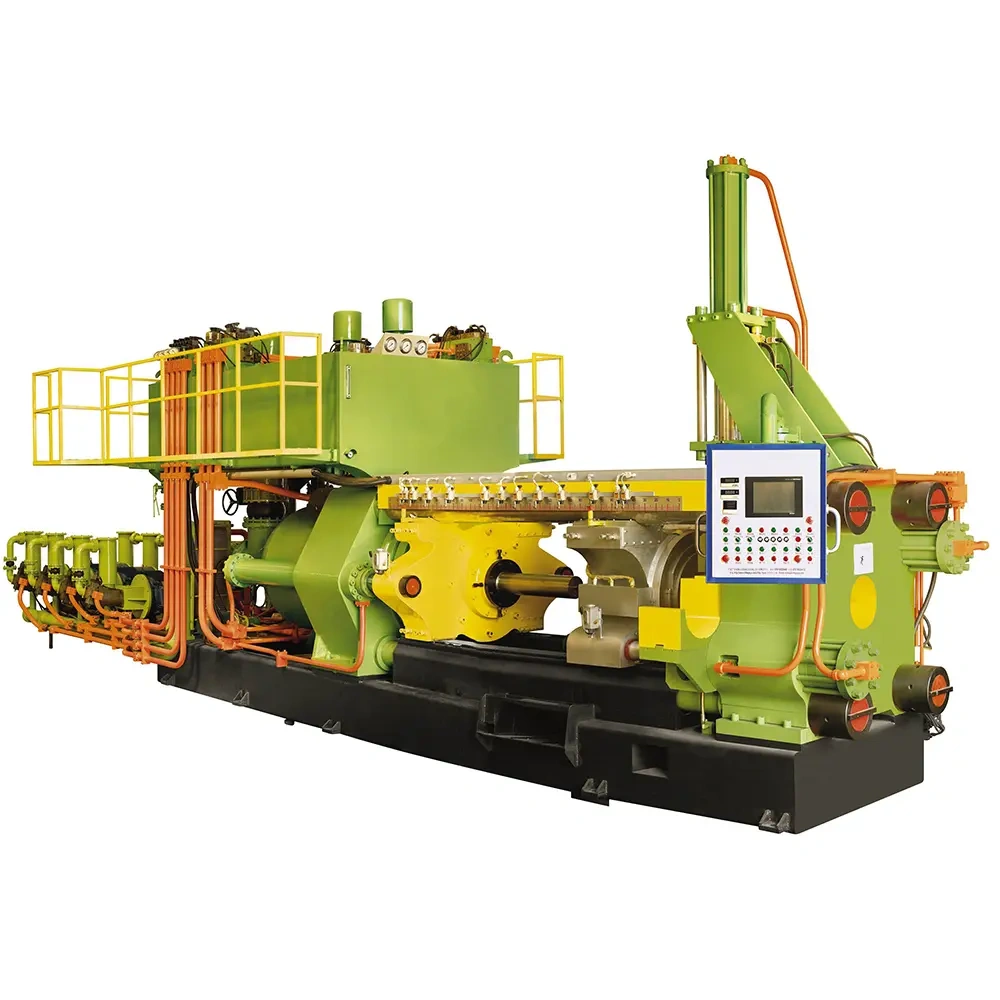

The 1000T Aluminum Extrusion Press is a heavy-duty industrial machine designed for high-volume production of large aluminum profiles. With 145KW total power and 21MPa working pressure, this robust press delivers consistent performance for Ø120mmx580mm aluminum billets, featuring a large Ø750mm plunger for maximum extrusion force.
Equipped with a sophisticated hydraulic system including main assistant cylinder (Ø180mmxØ140mm), four container cylinders (Ø160mmxØ90mm), and a Ø160mm shear cylinder, this press ensures smooth operation and precise control. The large 4.3m³ oil tank and 25m² plate heat exchanger maintain optimal temperature for continuous production cycles.
Designed for industrial environments, this 43-ton extrusion press offers exceptional stability with its 7500x3000x3800mm footprint and 1150mm center height. The Ø160mmxØ180mm discharge gate and Ø255mm die slide accommodate various tooling configurations for versatile profile production across construction, automotive, and industrial applications.
This 1000T extrusion press is ideal for manufacturing large aluminum profiles for construction frameworks, transportation components, industrial structures, and heavy-duty architectural elements. Its high capacity and pressure capabilities make it suitable for demanding production environments requiring precision and throughput.
| Component | Specification | Function |
|---|---|---|
| Main Assistant Cylinder | Ø180mm × Ø140mm | Primary force application |
| Container Cylinders (4) | Ø160mm × Ø90mm | Material containment system |
| Shear Cylinder | Ø160mm × Ø100mm | Precise billet shearing |
| Discharge Gate | Ø160mm × Ø180mm | Controlled material discharge |
| Die Slide | Ø255mm × 235mm | Tooling mounting system |
| Oil Tank | 4.3 m³ | Hydraulic fluid reservoir |
| Plate Heat Exchanger | 25 m² | Temperature regulation |
Our streamlined process ensures efficient project delivery from initial consultation to final implementation.
Frequently Asked Questions - Find answers to common questions about our products and services
A. Leave us massage with your purchase requirements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
A. Yes, we provide smart solutions for our customer, in order to increase efficiency.
A. Yes, free training in our factory is available.
A. Send me details about what you need, you will get the best price for the best machine. The price is competitive over the world.
A. One year warranty for normal use and we supply maintenance for free.
A. We accept payment methods such as L/C, T/T, DP, DA and so on.
A. Yes, our company has a team of professional engineers from Taiwan.
A. Our factory adopts mature Italy sub technology.
