200KW total power for demanding extrusion tasks
20-second cycle without billet for high throughput
21MPa working pressure ensures consistent quality
Handles 140mmx620mm billets for industrial production

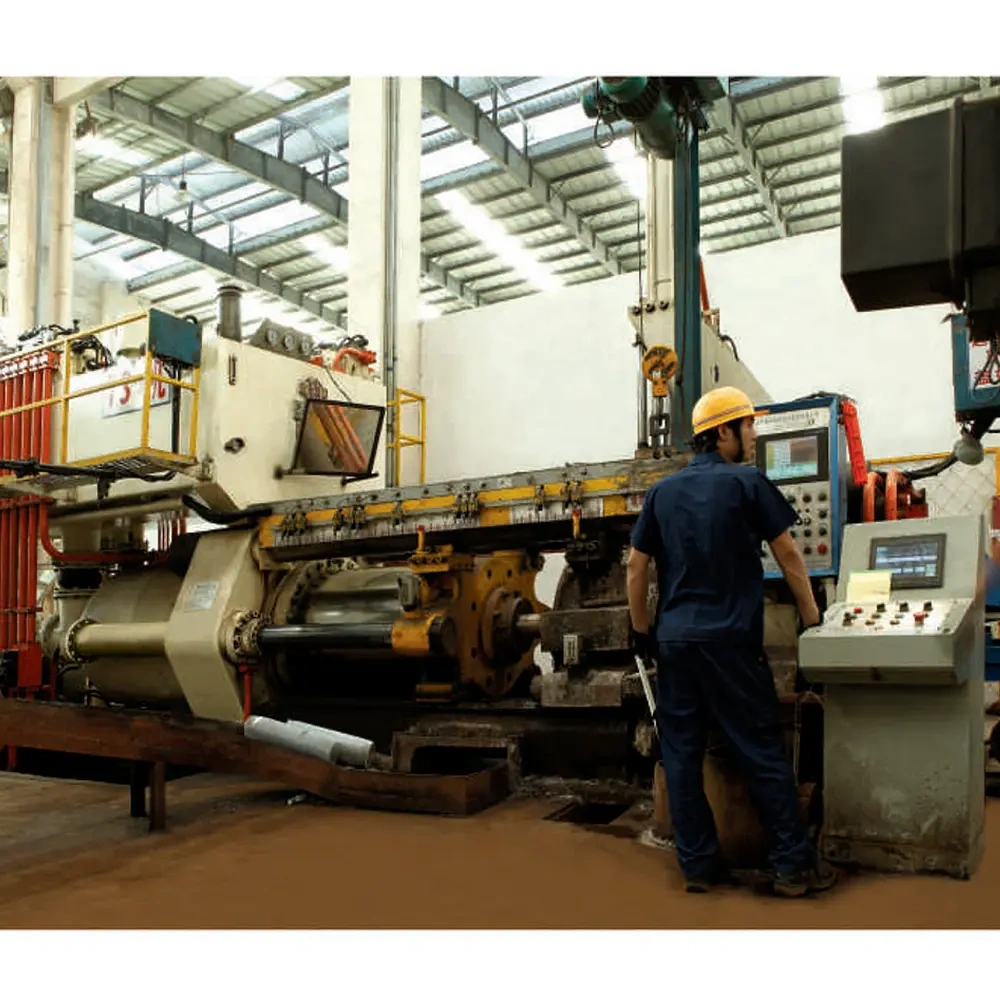

The 1250T Aluminum Extrusion Press is a heavy-duty industrial machine designed for high-volume production of large aluminum profiles. With a powerful 200KW motor system and 21MPa working pressure, this press delivers exceptional performance for extruding aluminum billets up to 140mmx620mm in size.
Equipped with a large Ø840mm plunger and robust hydraulic system including four container cylinders (Ø180mmxØ120mm), this extrusion press ensures smooth and reliable operation. The 5.2m³ oil tank and 25m² plate heat exchanger provide stable hydraulic fluid temperature and volume for continuous production cycles.
Built for industrial environments, this press offers remarkable stability with a total weight of 58 tons, minimizing vibration during operation. The machine's 1185mm center height and large die slide (285mmx255mm) provide excellent accessibility and tooling flexibility. With external dimensions of 8500x3000x4000mm, this press is engineered for heavy-duty production facilities requiring maximum output and durability.
This 1250T extrusion press is ideal for manufacturing large aluminum profiles for construction, transportation, industrial machinery, and architectural applications. Its high tonnage and precision control make it suitable for demanding extrusion projects requiring consistent quality and high production rates.
| Component | Specification | Function |
|---|---|---|
| Main Assistant Cylinder | Ø200mm × Ø150mm | Primary force application |
| Container Cylinders (4) | Ø180mm × Ø120mm | Material containment system |
| Shear Cylinder | Ø160mm × Ø100mm | Precise billet shearing |
| Discharge Gate | Ø180mm × 210mm | Controlled material discharge |
| Die Slide | Ø285mm × 255mm | Tooling mounting system |
| Oil Tank | 5.2 m³ | Hydraulic fluid reservoir |
| Plate Heat Exchanger | 25 m² | Temperature regulation |
