210KW total power for heavy-duty aluminum extrusion
150mm×680mm billet size for large profile production
21MPa working pressure for consistent extrusion quality
65-ton total weight for stable, vibration-free operation

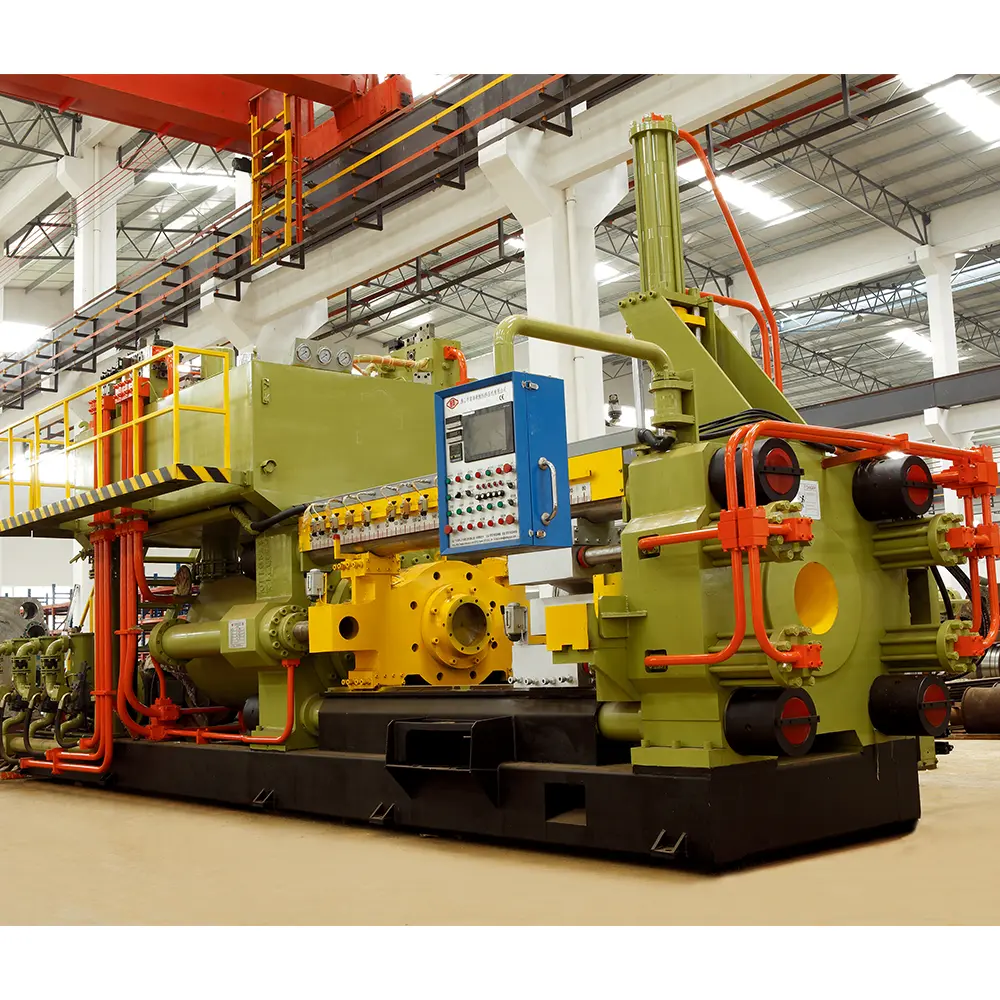

The 1400T Aluminum Extrusion Press is a heavy-duty industrial machine engineered for large-scale production of aluminum profiles. With 210KW total power and 21MPa working pressure, this hydraulic press delivers powerful extrusion force for 150mm×680mm aluminum billets, making it ideal for manufacturing large structural profiles and components.
Equipped with a large Ø870mm plunger diameter and optimized hydraulic system with four container cylinders (Ø180mm×Ø120mm), this extrusion press ensures smooth operation and consistent force distribution. The integrated 30m² plate heat exchanger maintains optimal operating temperature, while the 5.6m³ oil tank provides ample hydraulic fluid supply for continuous production runs.
Designed for industrial manufacturing environments, this heavy-duty extrusion press offers exceptional reliability with a total weight of 65 tons for vibration-free operation. The machine's 1210mm center height provides ergonomic access for operators, and the 200mm×230mm discharge gate ensures smooth material flow. With external dimensions of 10000×3000×4000mm, this press is built for maximum productivity in large-scale aluminum profile production.
This 1400T extrusion press is ideal for manufacturing large aluminum profiles for construction, transportation, industrial equipment, structural components, and custom architectural elements. Its high-power capability and large billet capacity make it suitable for heavy-duty production requiring precision and consistency in large profile extrusion.
| Component | Specification | Function |
|---|---|---|
| Main Assistant Cylinder | Ø220mm × Ø160mm | Primary force application |
| Container Cylinders (4) | Ø180mm × Ø120mm | Material containment system |
| Shear Cylinder | Ø160mm × Ø100mm | Precise billet shearing |
| Discharge Gate | Ø200mm × 230mm | Controlled material discharge |
| Die Slide | Ø285mm × 300mm | Tooling mounting system |
| Oil Tank | 5.6 m³ | Hydraulic fluid reservoir |
| Plate Heat Exchanger | 30 m² | Temperature regulation |
