265KW total power for heavy-duty extrusion tasks
Processes Ø178mm large billets up to 700mm length
21MPa working pressure ensures consistent quality
83-ton total weight for stable, vibration-free operation

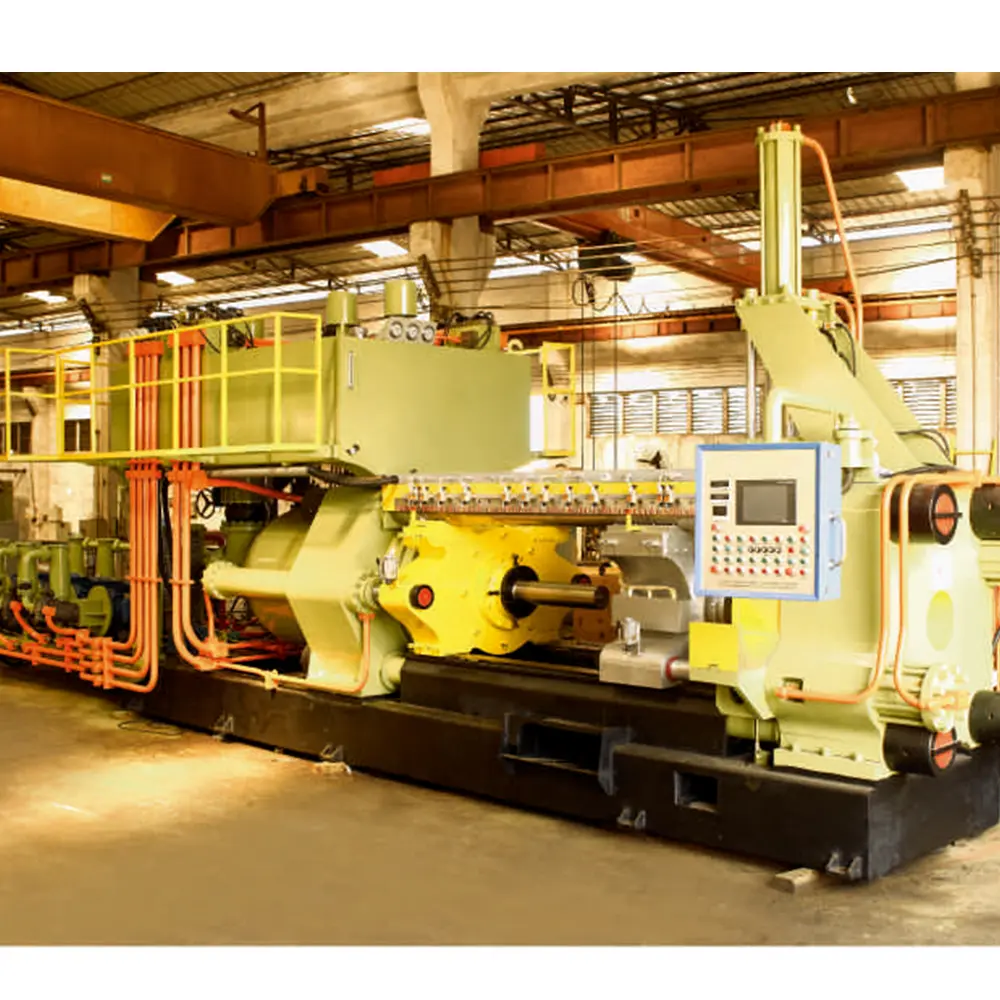

The 1650T Aluminum Extrusion Press is a heavy-duty industrial machine engineered for large-scale production of aluminum profiles and structural components. With a massive 265KW power system and 21MPa working pressure, this hydraulic press delivers powerful, consistent extrusion for aluminum billets up to Ø178mm×700mm in size.
Featuring a massive Ø950mm plunger diameter and a sophisticated hydraulic system with dual container cylinders, this extrusion press ensures smooth, high-force operation for demanding production environments. The integrated 30m² plate heat exchanger maintains optimal thermal conditions, while the 6.6m³ oil tank provides uninterrupted hydraulic fluid supply for continuous operation.
Designed for maximum reliability in industrial settings, this 83-ton extrusion press offers exceptional stability with minimal vibration. The machine's 1350mm center height provides optimal ergonomic access, and the Ø200mm×250mm discharge gate facilitates smooth material flow for large profiles. With external dimensions of 12000×3800×4500mm, this press is built for facilities requiring heavy-duty extrusion capabilities.

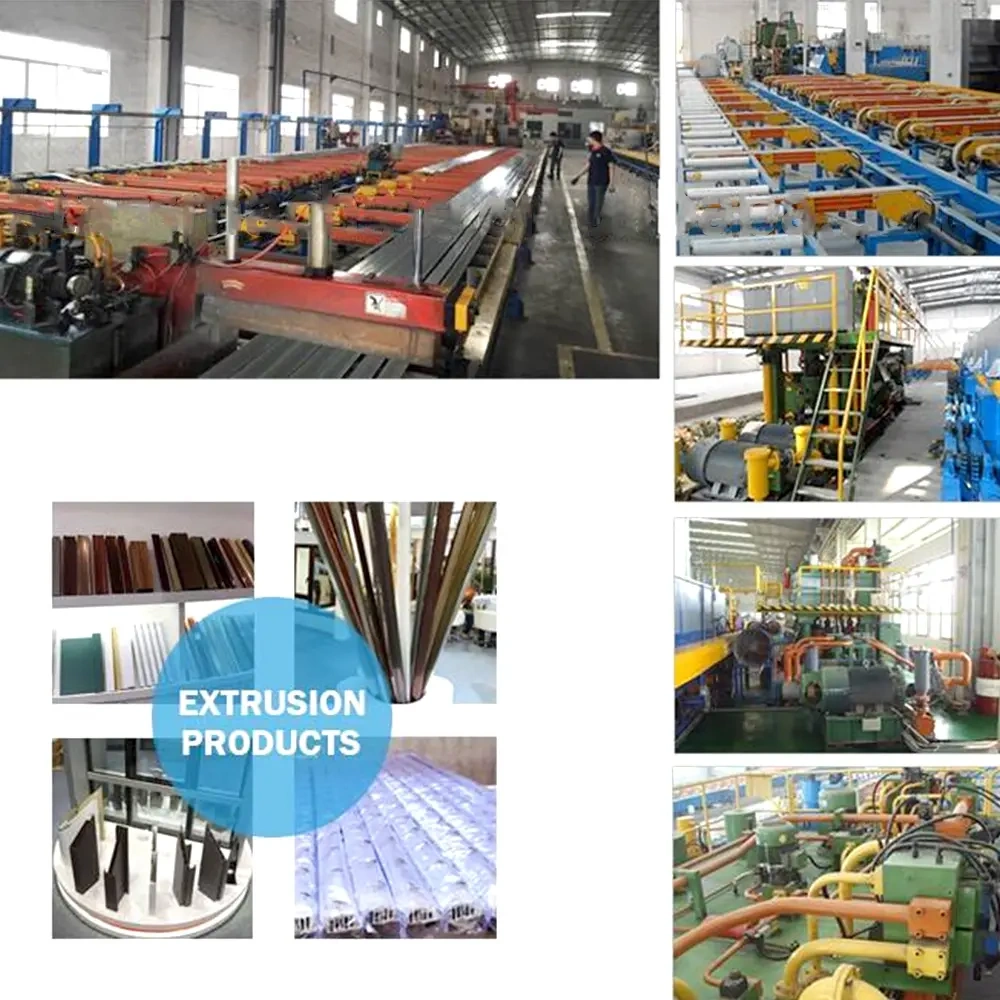

This 1650T extrusion press is ideal for manufacturing large aluminum profiles for construction, transportation, marine applications, industrial structures, and heavy equipment components. Its high-pressure capability and large billet capacity make it suitable for producing thick-walled profiles, structural members, and specialized industrial extrusions requiring maximum force and precision.
| Component | Specification | Function |
|---|---|---|
| Main Assistant Cylinder | Ø200mm × Ø150mm | Primary force application |
| Container Cylinders (2) | Ø220mm × Ø130mm | Material containment system |
| Shear Cylinder | Ø180mm × Ø130mm | Precise billet shearing |
| Discharge Gate | Ø200mm × 250mm | Large material discharge |
| Die Slide | Ø350mm × 340mm | Heavy-duty tooling system |
| Oil Tank | 6.6 m³ | Large hydraulic fluid reservoir |
| Plate Heat Exchanger | 30 m² | Advanced temperature control |
