420KW total power for heavy-duty extrusion operations
Ø230mm x 800mm billet size for large profile production
21MPa working pressure ensures consistent extrusion quality
130-ton total weight for stable, vibration-free operation

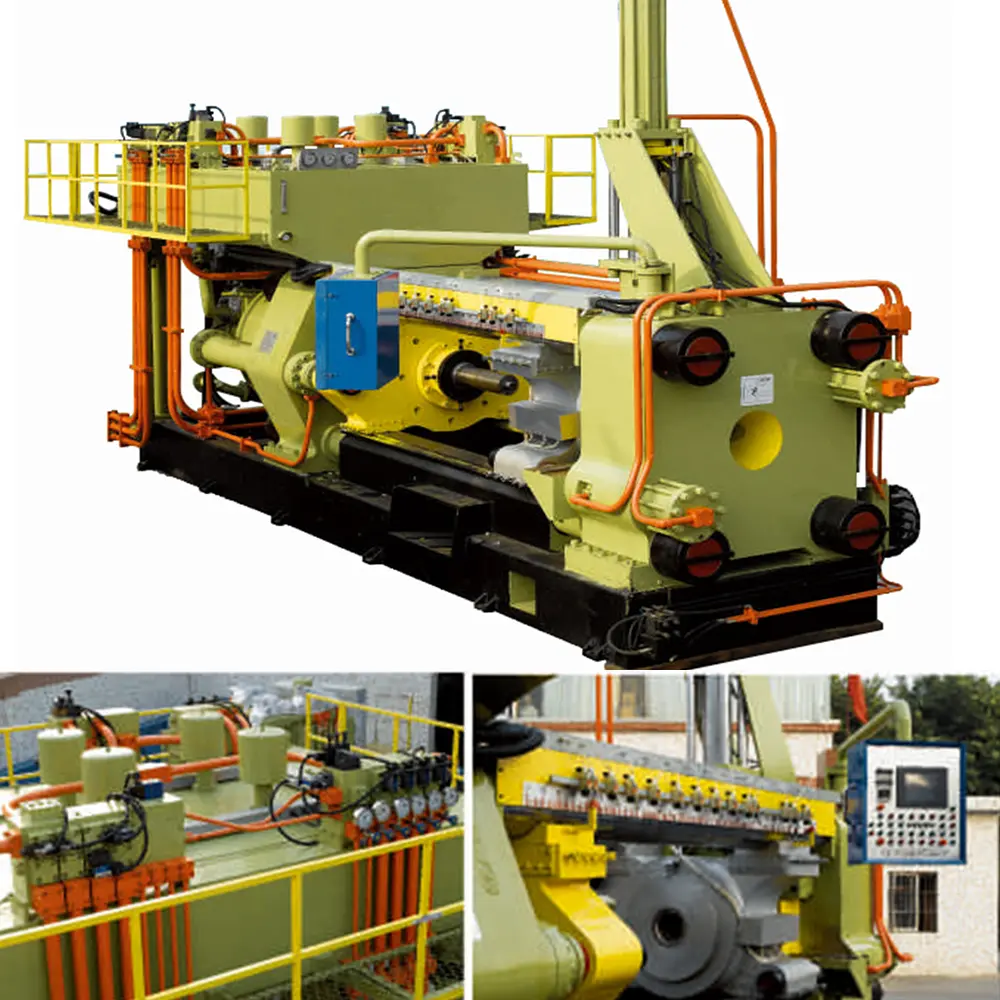

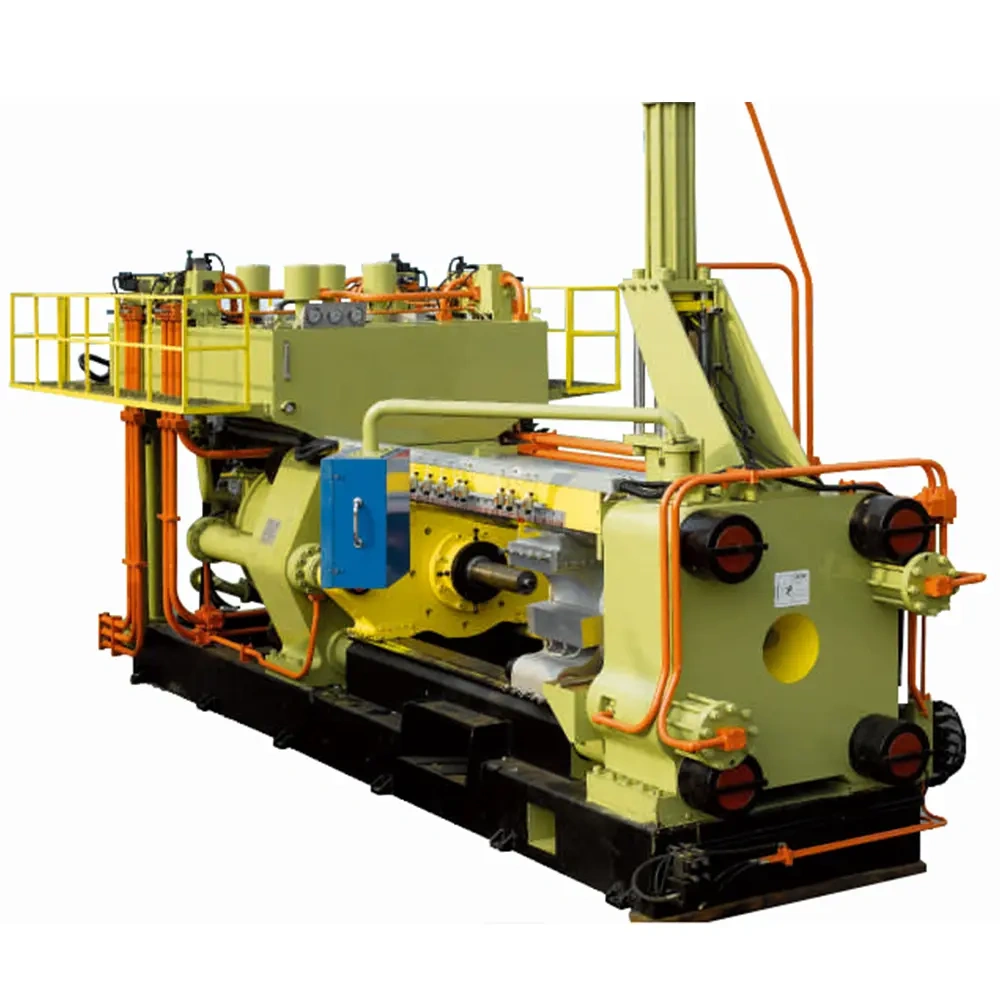

The 2000T Aluminum Extrusion Press is a heavy-duty industrial extrusion machine engineered for high-volume production of large aluminum profiles and structural components. With a powerful 420KW motor system and 21MPa working pressure, this hydraulic press delivers consistent, high-quality extrusion results for aluminum billets up to Ø230mm×800mm in size.
Featuring an oversized Ø1050mm plunger diameter and robust hydraulic system with four container cylinders (Ø250mm×Ø140mm), this heavy-duty extrusion press ensures smooth operation under maximum load conditions. The integrated 40m² plate heat exchanger maintains optimal operating temperature, while the 9.3m³ oil tank provides consistent hydraulic fluid supply for continuous production cycles.
Designed for demanding industrial environments, this extrusion press offers exceptional reliability with a massive 130-ton total weight for ultimate stability. The machine's 1600mm center height provides ergonomic access for operators, and the Ø280mm×320mm discharge gate ensures efficient material flow for large-scale production.
This 2000T extrusion press is ideal for manufacturing large aluminum structural profiles, aerospace components, heavy industrial frames, bridge components, and custom architectural elements. Its high-pressure capability and large billet capacity make it suitable for heavy-duty production runs requiring precision, consistency, and maximum throughput.
| Component | Specification | Function |
|---|---|---|
| Main Assistant Cylinder | Ø250mm × Ø180mm | Primary force application |
| Container Cylinders (4) | Ø250mm × Ø140mm | Material containment system |
| Shear Cylinder | Ø220mm × Ø140mm | Precise billet shearing |
| Discharge Gate | Ø280mm × 320mm | Large capacity material discharge |
| Die Slide | Ø400mm × 398mm | Heavy-duty tooling system |
| Oil Tank | 9.3 m³ | Large hydraulic fluid reservoir |
| Plate Heat Exchanger | 40 m² | High-capacity temperature regulation |
