896KW total power for heavy-duty extrusion operations
Handles Ø300mm×1100mm billets for large profiles
26-second no-billet cycle for efficient production
300-ton total weight ensures stability and durability

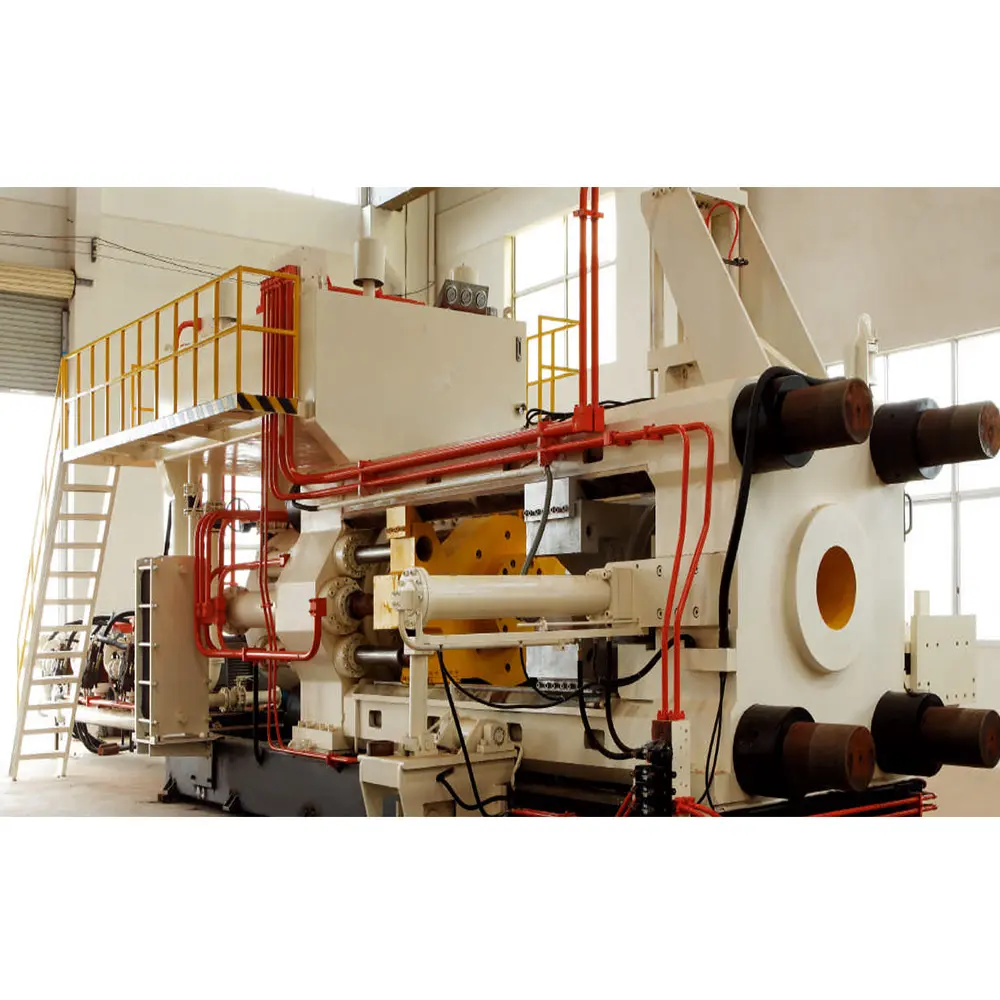

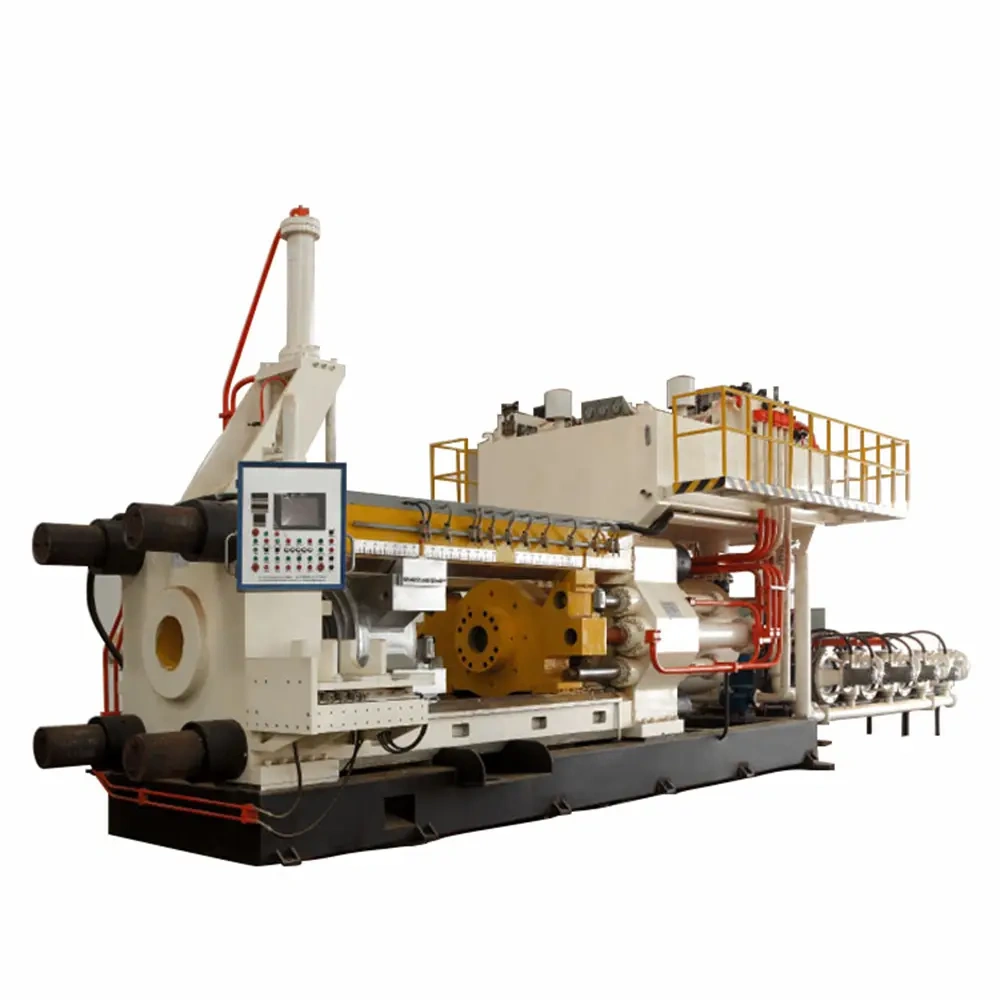

The 3600T High-Pressure Aluminum Extrusion Press is a heavy-duty industrial machine engineered for large-scale production of aluminum profiles and structural components. With a massive 896KW power system and 21MPa working pressure, this hydraulic press delivers consistent, high-quality extrusion for large aluminum billets up to Ø300mm×1100mm.
Featuring an enormous Ø1420mm plunger diameter and advanced hydraulic system with four container cylinders (Ø280mm×Ø160mm), this extrusion press ensures smooth operation under heavy loads. The integrated 60m² plate heat exchanger maintains optimal operating temperature, while the 26m³ oil tank provides consistent hydraulic fluid supply for continuous production runs.
Designed for demanding industrial environments, this extrusion press offers exceptional reliability with a total weight of 300 tons for vibration-free operation. The machine's 2310mm center height provides optimal working ergonomics, and the Ø380mm×450mm discharge gate ensures efficient material flow. With external dimensions of 18500×6530×8040mm, this press is built for facilities requiring maximum output capacity.
This 3600T extrusion press is ideal for manufacturing large aluminum profiles for construction, heavy transportation, industrial machinery, bridge components, and architectural structures. Its high-tonnage capability and large billet capacity make it suitable for industrial-scale production of structural aluminum components requiring precision and strength.
| Component | Specification | Function |
|---|---|---|
| Main Assistant Cylinder | Ø300mm × Ø220mm | Primary force application system |
| Container Cylinders (4) | Ø280mm × Ø160mm | Heavy-duty containment system |
| Shear Cylinder | Ø320mm × Ø230mm | Large billet shearing |
| Discharge Gate | Ø380mm × 450mm | High-volume material discharge |
| Die Slide | Ø500mm × 500mm | Heavy-duty tooling system |
| Oil Tank | 26 m³ | Large hydraulic fluid reservoir |
| Plate Heat Exchanger | 60 m² | Advanced temperature regulation |
Our streamlined process ensures efficient project delivery from initial consultation to final implementation.
Frequently Asked Questions - Find answers to common questions about our products and services
A. Leave us massage with your purchase requirements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
A. Yes, we provide smart solutions for our customer, in order to increase efficiency.
A. Yes, free training in our factory is available.
A. Send me details about what you need, you will get the best price for the best machine. The price is competitive over the world.
A. One year warranty for normal use and we supply maintenance for free.
A. We accept payment methods such as L/C, T/T, DP, DA and so on.
A. Yes, our company has a team of professional engineers from Taiwan.
A. Our factory adopts mature Italy sub technology.
