140KW total power for heavy-duty extrusion operations
18-second cycle without billet for optimal productivity
21MPa working pressure ensures consistent extrusion quality
Handles Ø110mmx550mm aluminum billets for versatile production

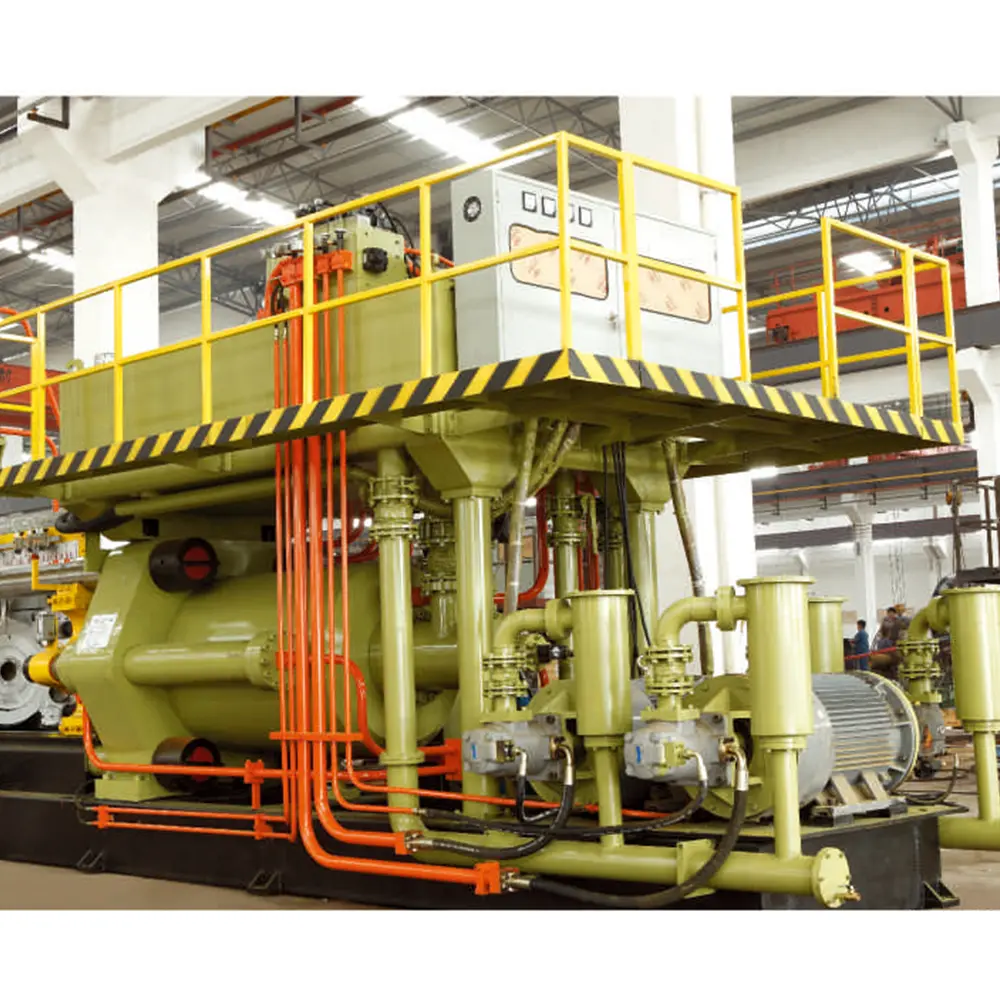

The 800T Hydraulic Aluminum Extrusion Press is a high-performance industrial machine designed for large-scale aluminum profile manufacturing. With 140KW total power and 21MPa working pressure, this robust press delivers superior extrusion force for processing Ø110mmx550mm aluminum billets with precision and efficiency.
Featuring a massive Ø650mm plunger diameter and a sophisticated hydraulic system with four container cylinders (Ø150mmxØ80mm), this extrusion press ensures stable operation and consistent output. The integrated 20m² plate heat exchanger maintains optimal thermal conditions, while the 4m³ oil tank provides reliable hydraulic fluid supply for continuous production cycles.
Engineered for industrial durability, this 38-ton extrusion press offers vibration-free operation with a center height of 1055mm for ergonomic access. The Ø150mm discharge gate facilitates smooth material flow, and the compact 7500x3000x3500mm footprint allows efficient space utilization in production facilities while maintaining high throughput capabilities.
This 800T extrusion press is ideal for manufacturing structural aluminum profiles, automotive components, industrial framing systems, architectural elements, and specialized extrusions requiring high precision and consistent quality in high-volume production environments.
| Component | Specification | Function |
|---|---|---|
| Main Assistant Cylinder | Ø180mm × Ø140mm | Primary force application |
| Container Cylinders (4) | Ø150mm × Ø80mm | Material containment system |
| Shear Cylinder | Ø140mm × Ø90mm | Precise billet shearing |
| Discharge Gate | Ø150mm | Controlled material discharge |
| Die Slide | Ø240mm × 220mm | Tooling mounting system |
| Oil Tank | 4 m³ | Hydraulic fluid reservoir |
| Plate Heat Exchanger | 20 m² | Temperature regulation |
Our streamlined process ensures efficient project delivery from initial consultation to final implementation.
Frequently Asked Questions - Find answers to common questions about our products and services
A. Leave us massage with your purchase requirements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
A. Yes, we provide smart solutions for our customer, in order to increase efficiency.
A. Yes, free training in our factory is available.
A. Send me details about what you need, you will get the best price for the best machine. The price is competitive over the world.
A. One year warranty for normal use and we supply maintenance for free.
A. We accept payment methods such as L/C, T/T, DP, DA and so on.
A. Yes, our company has a team of professional engineers from Taiwan.
A. Our factory adopts mature Italy sub technology.
