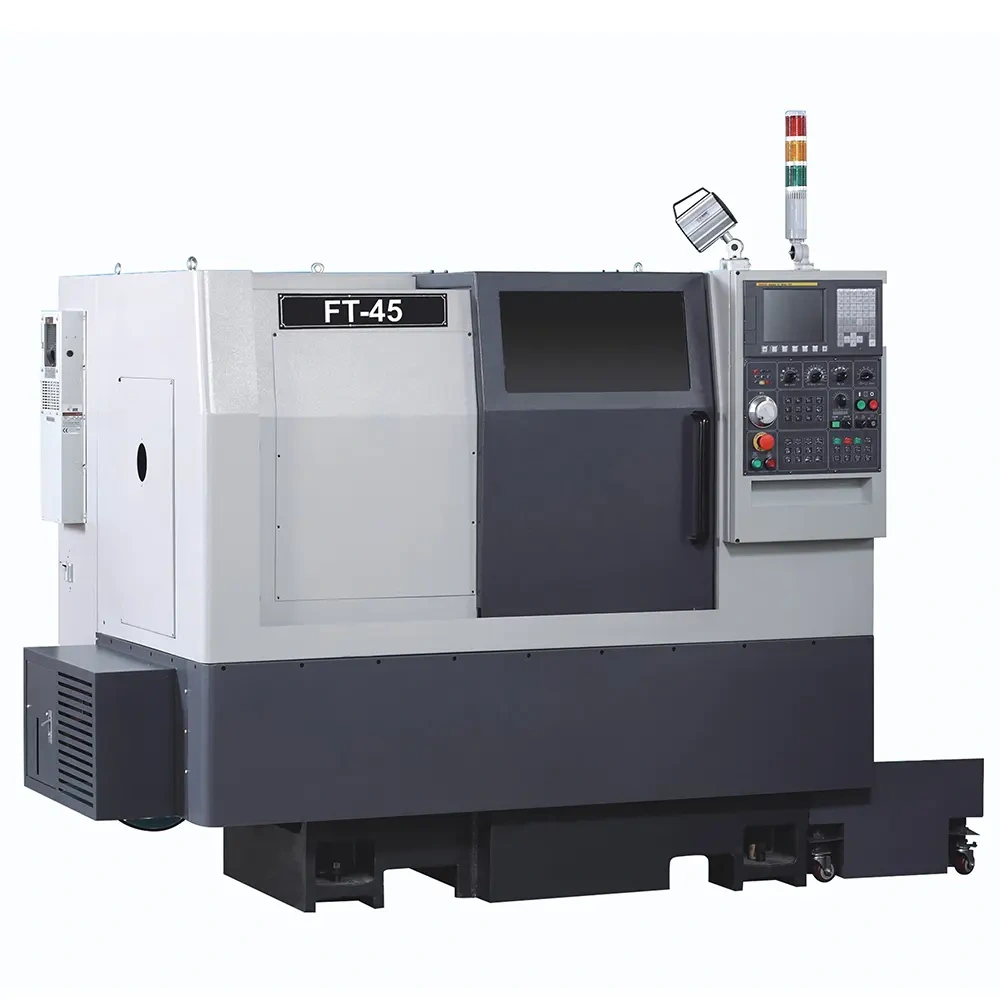

The FT-45 is a high rigidity CNC lathe engineered for heavy duty turning. Featuring a 45° bed and automatic chip removal system, this robust CNC turning center delivers reliable production efficiency.
Engineered for rapid, continuous operation, this CNC lathe integrates 30M/min linear guide motion with a full automatic chip removal system. The 45° inclined bed ensures efficient chip flow and operator-friendly access, creating a streamlined production cell that dramatically reduces manual intervention and cycle times for high-volume part manufacturing.
| Parameter | Specification |
|---|---|
| Standard Number of Tools | 8 pcs |
| Standard Tool Shank Size | Φ20 mm |
| Standard Boring Post Spec | Ø25 mm |
| Max. Swing Over Bed | Ø600 mm |
| Max. Machining Diameter | Ø400 mm |
| Max. Machining Length | 200 mm |
| Max. Bar Capacity | Ø45 mm |
| Name | Quantity | Unit |
|---|---|---|

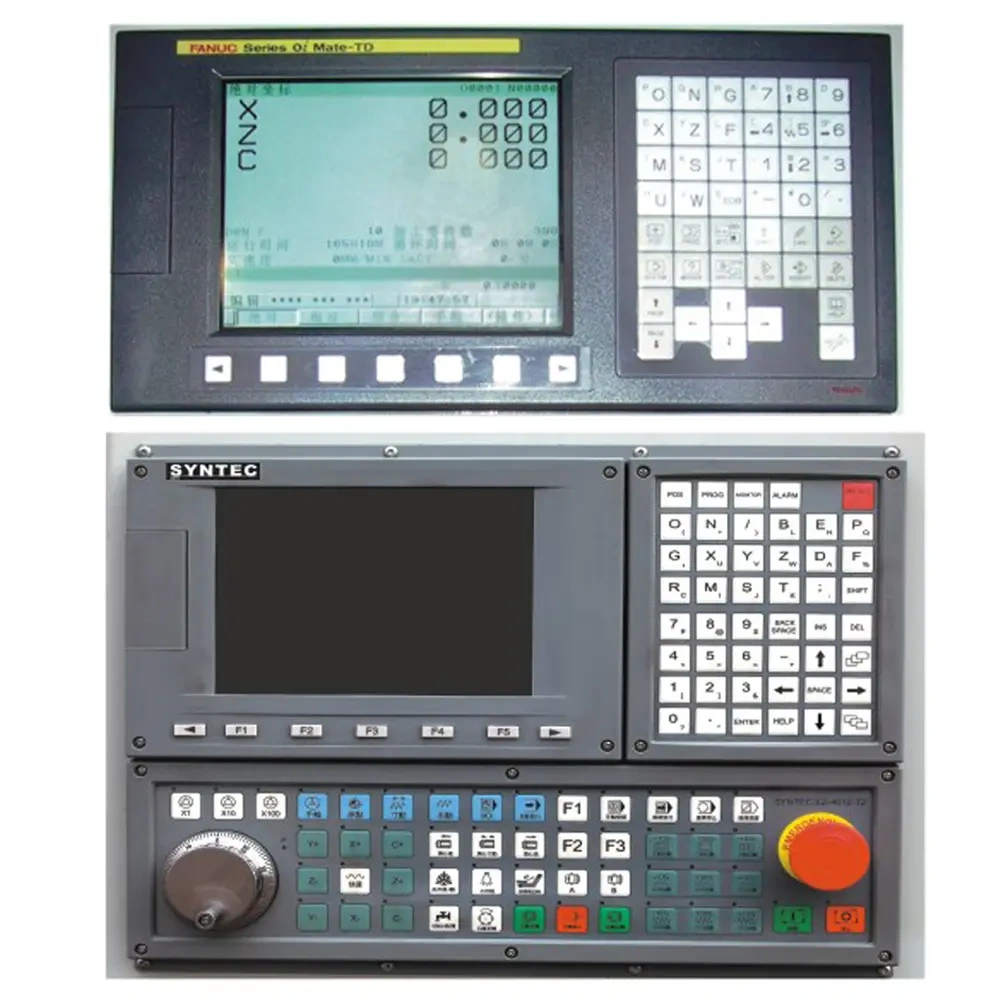

| SYNTEC Controller | 1 | Group |

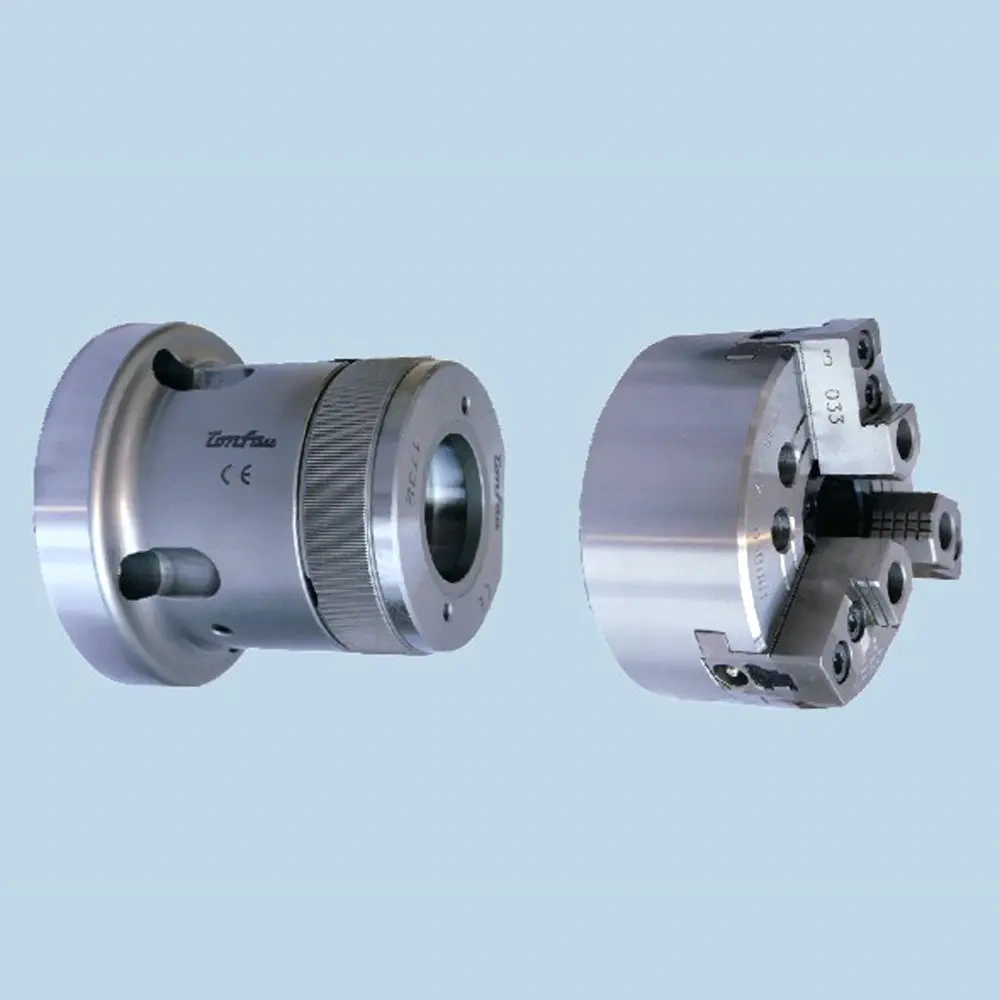

| Collect Chuck | 1 | Piece |
| Work Lamp | 1 | Lamp |
| Bar Feeder Interface | 1 | Group |
| Radial Tool Post | 1 | Piece |
| Radial Tool Post | 1 | Piece |
| Boring Cutter Post | 2 | Piece |

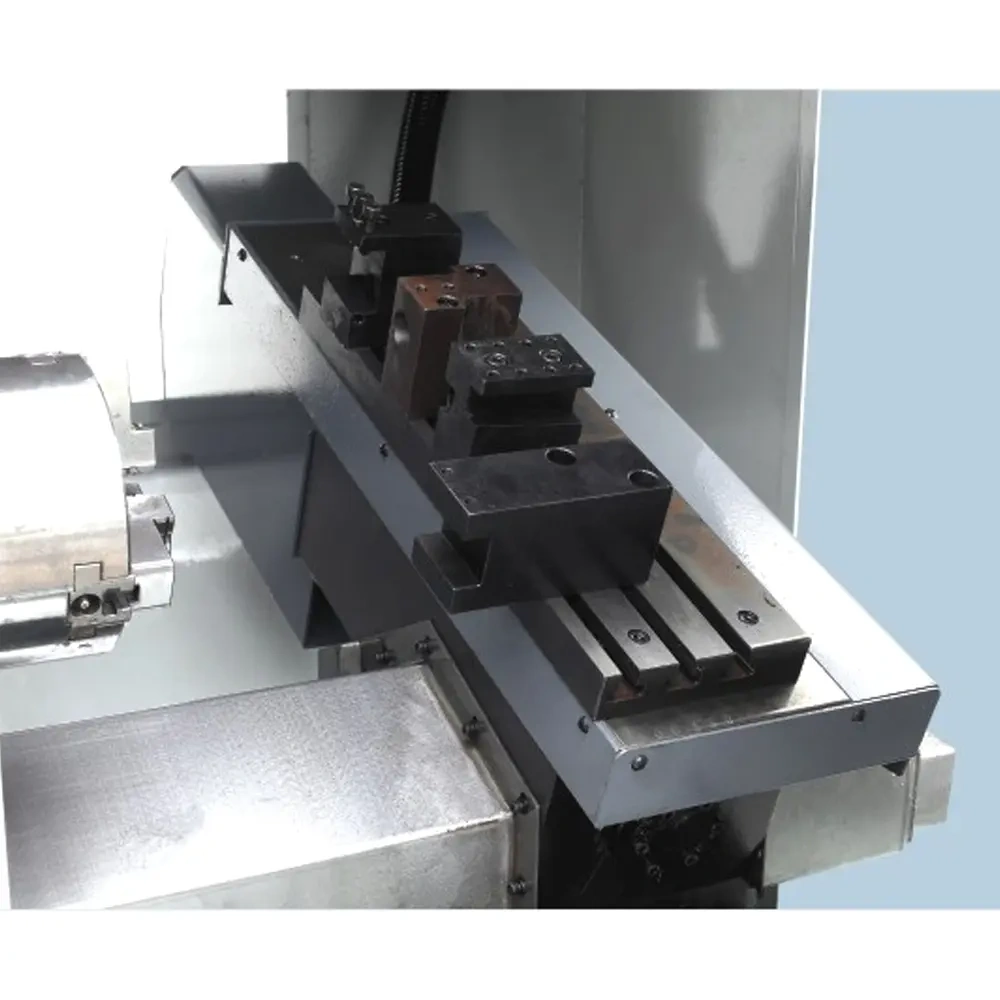

| Dual Post | 1 | Piece |
| Cutting Tool Post | 1 | Piece |
| Radial Dual Post | 1 | Piece |
| Tool Post Fuel Ectonomc | 5 | Piece |
| Boring Cutter Bushings Φ8、Φ10、Φ12、Φ16、Φ20 | 1 | Piece Each |
| ER25 Drilling Shank | 1 | Set |
| Foot Switch | 1 | Piece |
| Work Lamp | 1 | Group |
| Automatic Lubrication System | 1 | Group |

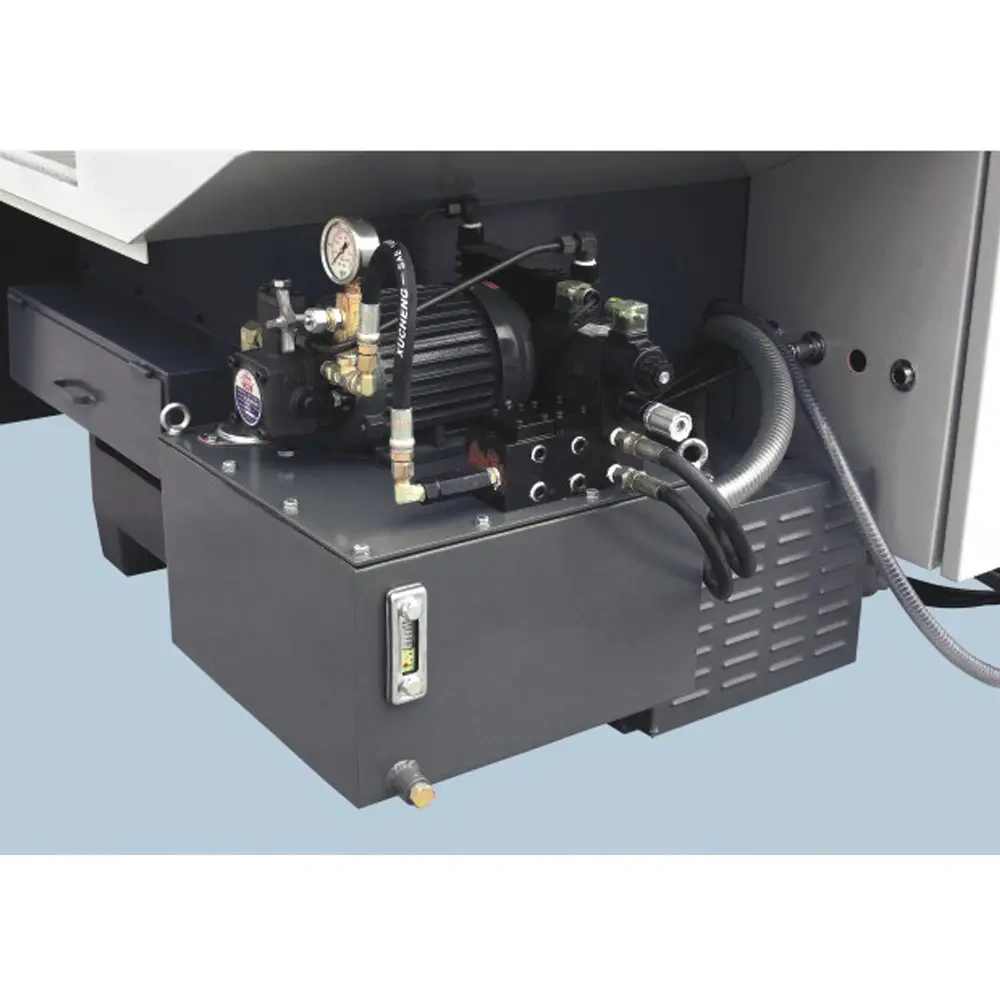

| Hydraulic System | 1 | Group |
| Coolant System | 1 | Group |
| Tool Kit | 1 | Group |
| Operation Manual | 1 | Set |
| Name | Quantity | Unit |
|---|---|---|
| Controller FANUC 0i Mate TD | 1 | Set |

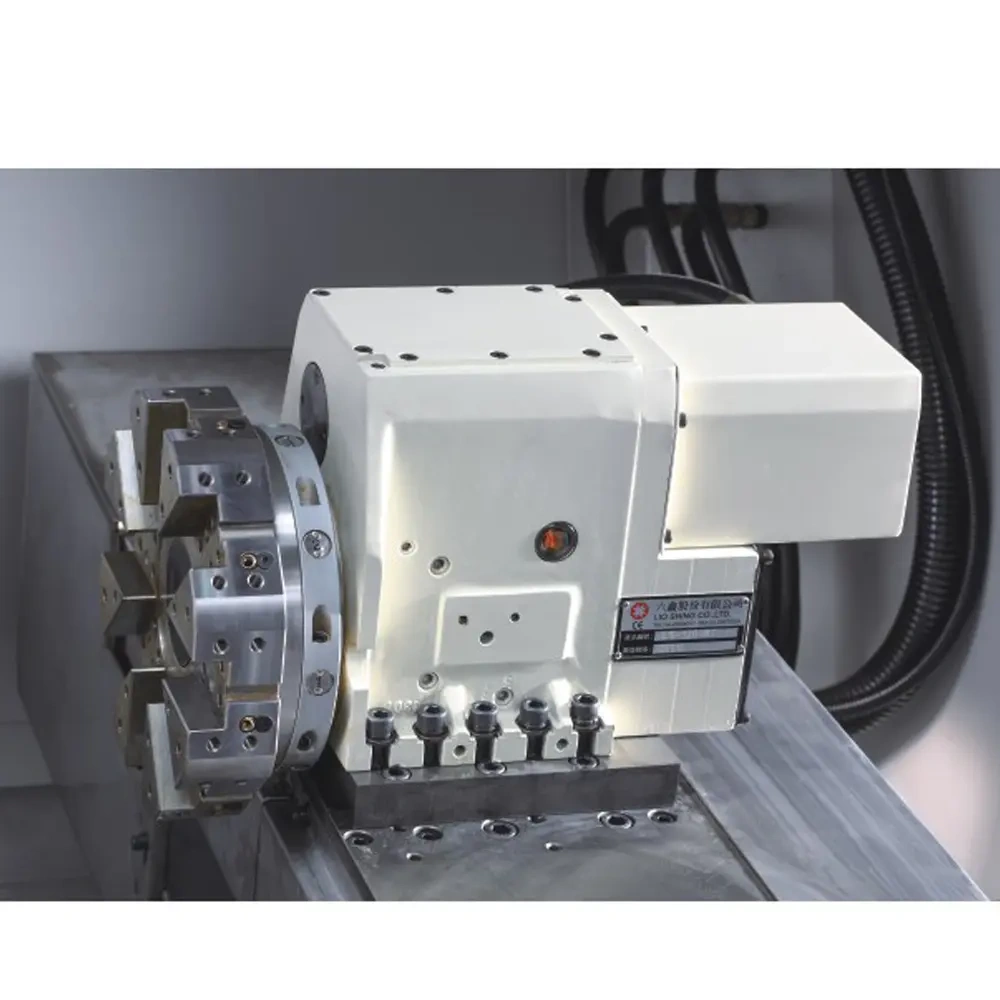

| LS-120-8T-Servo Turret | 1 | Group |
| LS-120-8T-Hydraulic Turret | 1 | Group |
| Part Catcher | 1 | Group |
| Bar Feeder | 1 | Group |
| Side Milling Mechanism | 1 | Piece |
| End Face Milling Mechanism | 1 | Group |
| C-axis Mechanism | 1 | Group |
* Special accessories are optional and available at extra cost
