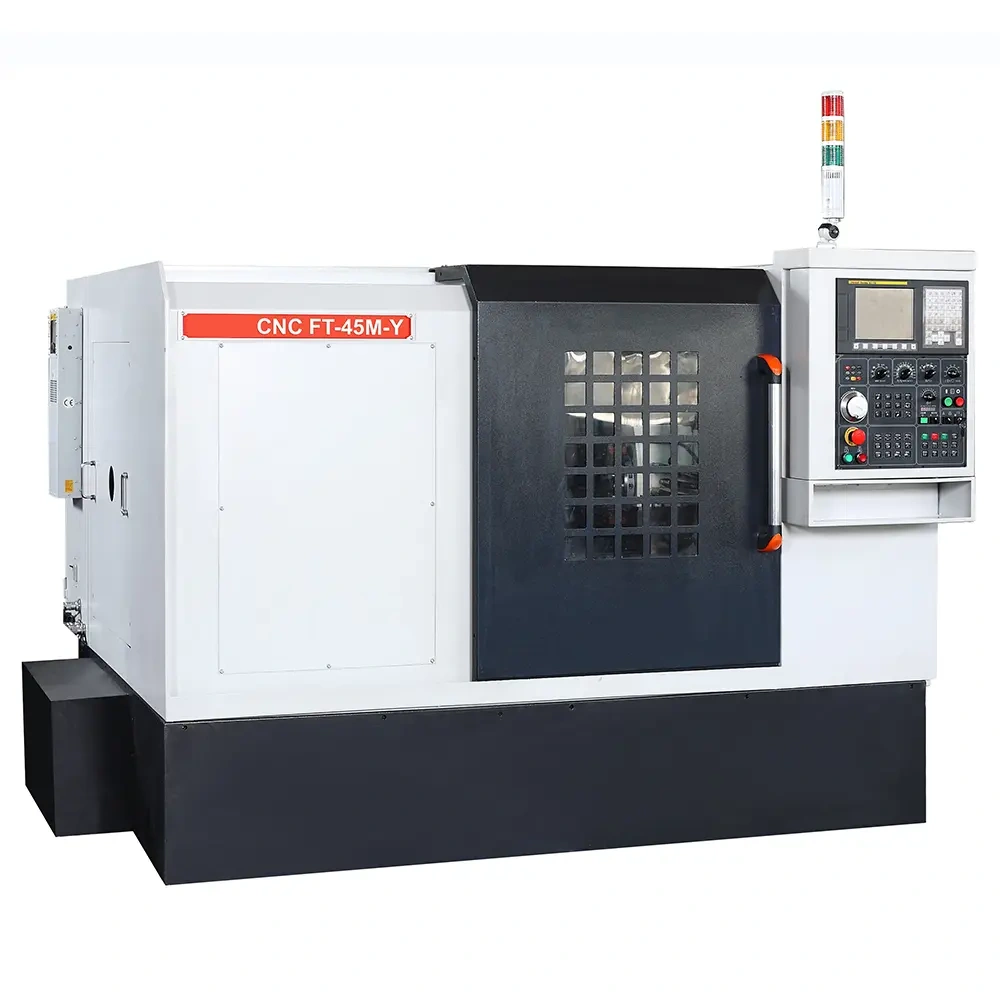

The FT-45M-Y CNC Lathe features a 4500rpm A2-5 spindle, 0.005mm positioning precision, and Ø50mm machining capacity. Ideal for high-precision turning with Syntec control and bar feeder interface.
Engineered for precision and continuous production, this CNC lathe combines ±0.003mm repeatability with a comprehensive bar feeder interface and automatic lubrication system. The 4500rpm spindle and 30m/min rapid traverse ensure efficient cycles, creating a production-ready cell that minimizes setup time and delivers consistent accuracy for automated part manufacturing.
| Parameter | Specification |
|---|---|
| Tool Magazine Capacity | 8 Pieces |
| Tool Setting Method | Hydraulic Drive |
| End Milling Power Head ER20 0.75kw/4000rpm | 4 Pieces |

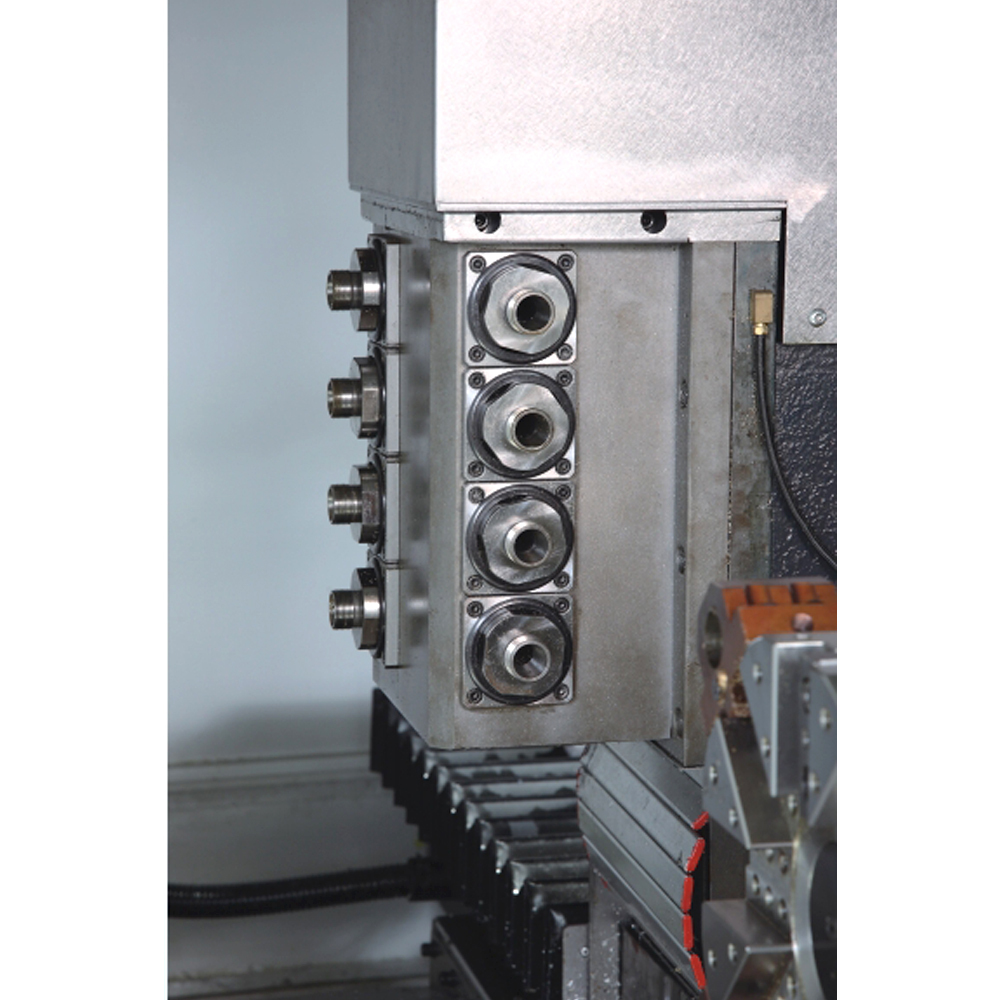

| Side Milling Power Head ER20 0.75kw/4000rpm | 4 Pieces |
| The Quartet Knife Block Specification | Φ20 mm |
| The Cutter Base Specification | Φ25 mm |
| Name | Quantity | Unit |
|---|---|---|
| SYNTEC 6A-T | 1 | Group |
| 6" 3-jaw Chuck | 1 | Pieces |
| Halogen Work Lamp | 1 | Lamp |
| Bar Feeder Interface | 1 | Group |
| End Face Milling Mechanism | 4 | Pieces |
| Side Face Milling Mechanism | 4 | Pieces |
| Tool Inclined Plate Group | 8 | Group |
| Coolant System | 1 | Group |
| Automatic Lubrication System | 1 | Group |
| Hydraulic System | 1 | Group |
| Boring cutter bushings Φ8 Φ10、Φ12、Φ16、Φ20 | 1 | Group |
| Foot Switch | Each 1 | Pieces |
| Tool Kit | 1 | Set |
| Operation Manual | 1 | Set |
| Chip Conveyor | 1 | Group |
* Special accessories are optional and available at extra cost
