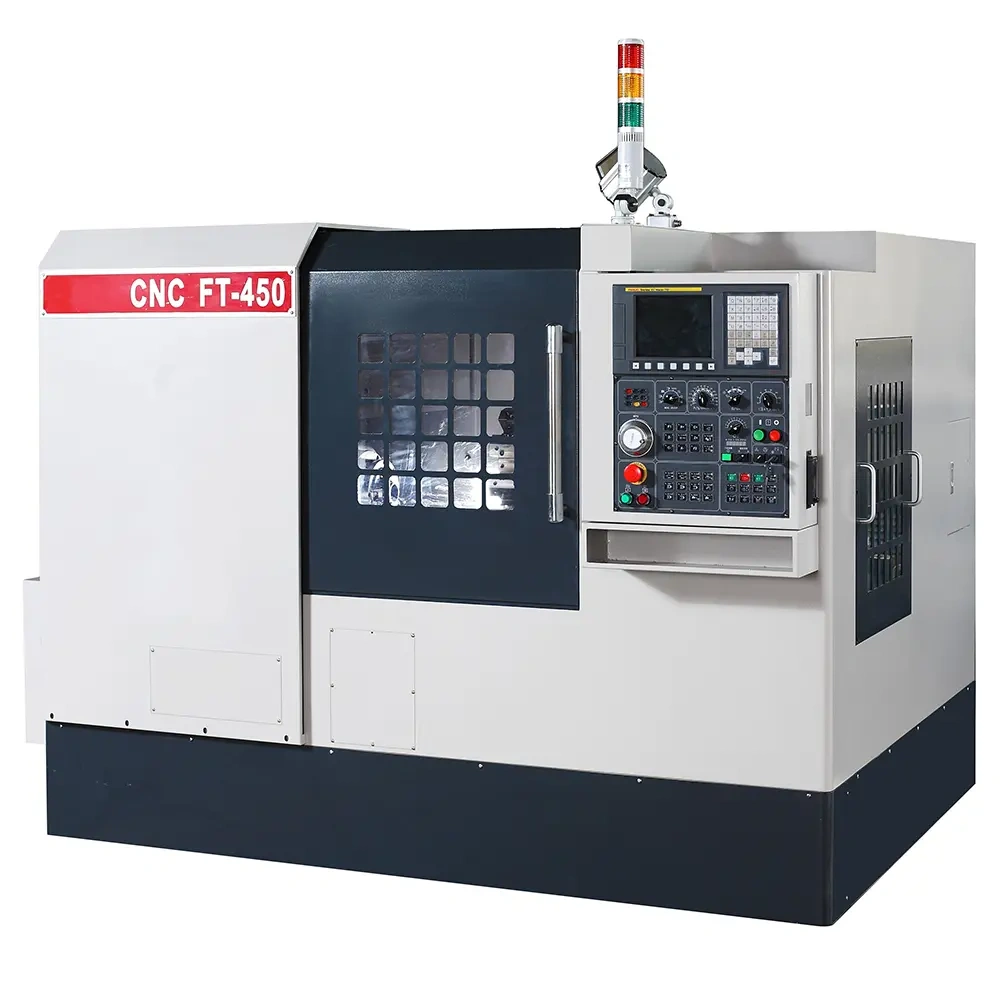

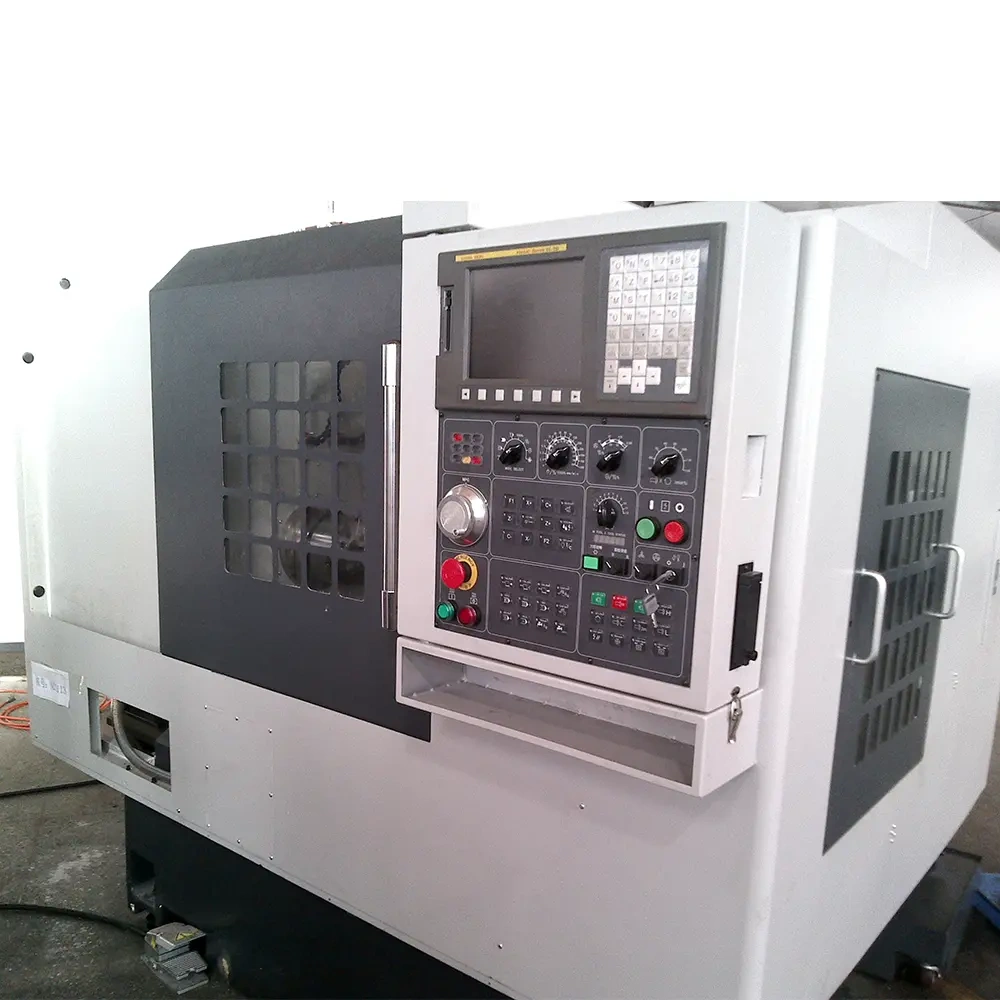

The FT-450 is engineered for high-volume automated manufacturing, featuring a rigid 45° slant bed, 30m/min rapid traverse, and a 6000 rpm high-torque spindle. With ±0.003mm repeatability and a comprehensive standard tooling package, it delivers exceptional efficiency and precision for modern workshops.
Features an exceptionally rigid monobloc structure engineered for high-speed precision and reduced vibration. The 45° slant bed design promotes efficient chip flow and easy integration with automated loading systems, ensuring consistent accuracy and maximum uptime in high-volume production environments.
| Parameter | Specification |
|---|---|
| Tool Magazine Capacity | 10 Pieces |
| Tool Setting Method | Hydraulic Drive |
| Tool Post Specification | Φ25 mm |
| Tool Bushing Specification | Φ40 mm |
| Name | Quantity | Unit |
|---|---|---|
| Controller FANUC 0i TD | 1 | Group |
| Collet Chuck /6" 3-jawhydraulic Chuck | 1 (Select one) | Piece |
| Halogen Work Lamp | 1 | Lamp |
| Bar Feeder Interface | 1 | Group |
| Φ25 Radial Tool Post | 2 | Pieces |
| Φ40 Boring Cutter Post | 5 | Pieces |
| Tool Inclined Plate Group | 10 | Pieces |
| Boring cutter bushings Φ8, Φ10, Φ12, Φ16, Φ20, Φ25, Φ32 | Each 1 | Piece |
| Drilling Post ER32 | 1 | Piece |
| Foot Switch | 1 | Piece |
| Tool Kit | 1 | Set |
| Operation Manual | 1 | Set |
| Chip Conveyor | 1 | Stand |
| Name | Quantity | Unit |
|---|---|---|
| High Pressure Coolant Pump | 1 | Piece |
| Program Tailstock | 1 | Group |
| Part Catcher | 1 | Group |
| Bar Feeder | 1 | Group |
| 8" 3-jaw Hydraulic Chuck | 1 | Piece |
* Special accessories are optional and available at extra cost
