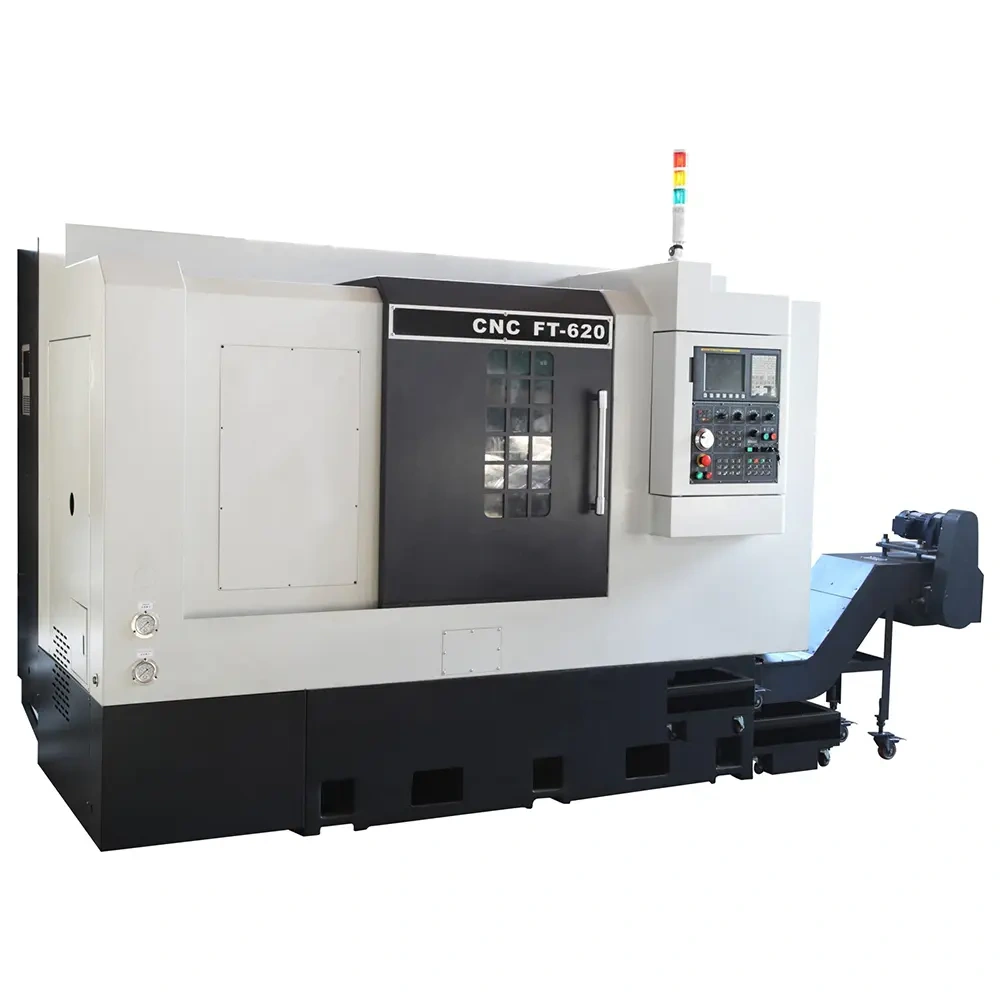

Engineered for high-speed precision machining and uninterrupted heavy-duty cutting, the FT-620 features a rigid box structure, 30m/min rapid traverse, and a 3500 rpm high-torque spindle. With ±0.003mm repeatability and comprehensive standard accessories, it delivers exceptional efficiency for lights-out manufacturing.
Incorporates an integrated high-rigidity box structure and advanced finite element analysis (FEA) optimization, specifically engineered for high-speed precision machining and uninterrupted heavy-duty cutting operations. This robust design guarantees exceptional thermal stability during prolonged use, ensures superior surface finishes at high material removal rates, and delivers the continuous operational reliability essential for modern lights-out manufacturing environments.
| Parameter | Specification |
|---|---|
| Tool Magazine Capacity | 10 Pieces |
| Turret Drive | Hydraulic Drive |
| Tool Post Specification | Φ40 mm |
| Tool Bushing Specification | Φ25 mm |
| Name | Quantity | Unit |
|---|---|---|
| Controller FANUC 0i Mate TD (FT-620) | 1 | Set |
| Controller FANUC 0i TD (FT-620MC) | 1 | Set |
| 10" 3-Jaw Hydraulic Chuck / Collet Chuck (select one) | 1 | Set |
| Φ40 Boring Cutter Post | 5 | Pieces |
| Φ25 Radial Tool Post | 2 | Pieces |
| Excircle Tool Post (FT-620MC) | 1 | Set |
| Inner Bore Tool Post (FT-620MC) | 1 | Set |
| End Face Tool Post (FT-620MC) | 1 | Set |
| Vertical Powered Tool Post (FT-620MC) | 1 | Set |
| Radial Powered Tool Post (FT-620MC) | 1 | Set |
| Drilling Post ER32 | 1 | Piece |
| Boring Cutter Bushings Φ8, Φ10, Φ12, Φ16, Φ20, Φ25, Φ32 | Each 1 | Piece |
| Tool Inclined Plate Group | 1 | Set |
| Hydraulic System | 1 | Set |
| Coolant System | 1 | Set |
| Bar Feeder Interface | 1 | Set |
| Halogen Work Lamp | 1 | Lamp |
| Foot Switch | 1 | Piece |
| Chip Conveyor (with Chip Cart) | 1 | Set |
| Live Center | 1 | Piece |
| Work Completion Indicator Lamp | 1 | Lamp |
| Tool Kit | 1 | Set |
| Operation Manual | 1 | Set |
| Programmable Tailstock | 1 | Set |
| Name | Quantity | Unit |
|---|---|---|
| Controller FANUC 0i-TD (FT-620) | 1 | Set |
| Part Catcher | 1 | Set |
| Bar Feeder | 1 | Set |
| Servo Turret | 1 | Set |
* Special accessories are optional and available at extra cost
